OBDSTAR MS50 Intelligent Motorcycle Diagnostic Tool. It includes complete diagnostic functions including fault codes reading or clearing, data stream reading, action test, setting, coding, etc.; OBDSTAR MS50 is a portable tablet which has super performance and industrial appearance design. It is a new generation of intelligent motorcycle diagnostic equipment tailored for customers.
Why OBDSTAR MS50
1. The first fault guidance, help data, technical bulletin, diag socket, etc. help you diagnose accurately and efficiently;
2. Exclusive interactive circuit diagram and electrical description query function, so that you can have a worry-free diagnosis;
3. Diversified data stream display modes such as text, waveform diagram and instrument diagram, allowing you to easily analyze faults;
4. Automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit setting , EOL mode, transmission memory reset, clear computer memory, etc.
5. Free update for one year, no need tokens.

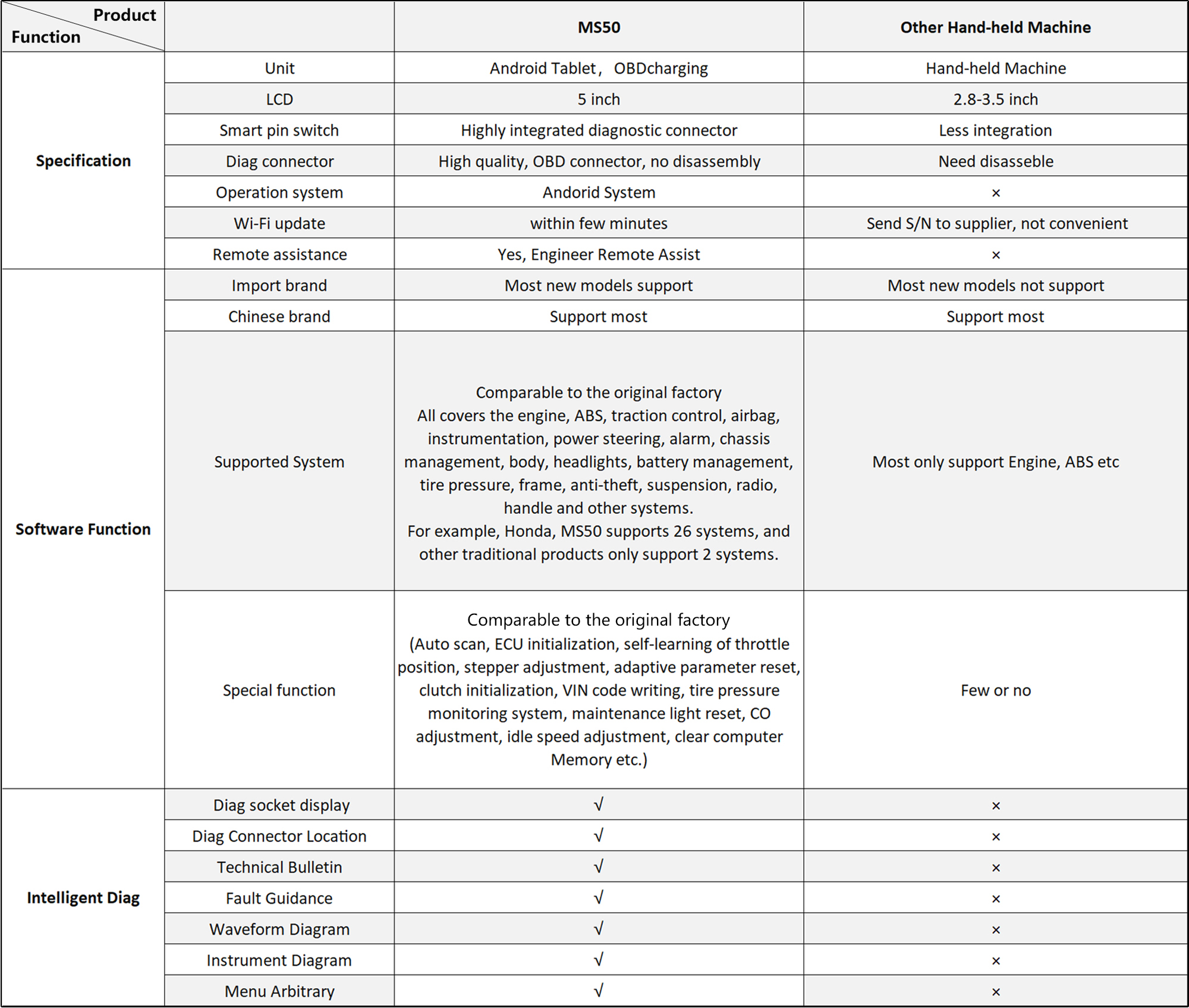

OBDSTAR MS50
Operating System
Android 5.1.1
CPU
RK3128 Quad-Core ARM Cortex A7
Battery
2500mA, rechargeable polymer lithium battery
Extension memory card
32G Micro SD (TF) card supported
Storage capacity
16GB
LCD
5.0 inch
LCD resolution
800*480
Touch screen
capacitive touch screen
Wifi
supported
Working temperature
-20℃ ~ 55℃(14℉ ~ 131℉ )
Storage temperature
-20℃ ~ 70℃(-4℉ ~ 158℉ )
Weight
about 700g
Dimension
140mm*89mm*18mm
Will Update soon..
1. Simple and intuitive menu guidance allows you to quickly master the equipment operation;
2. Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding, etc.;
3. Menu Arbitrary selection is more convenient and quick;
4. Record and play back real-time data streams, quickly and accurately locate sensor and component faults;
